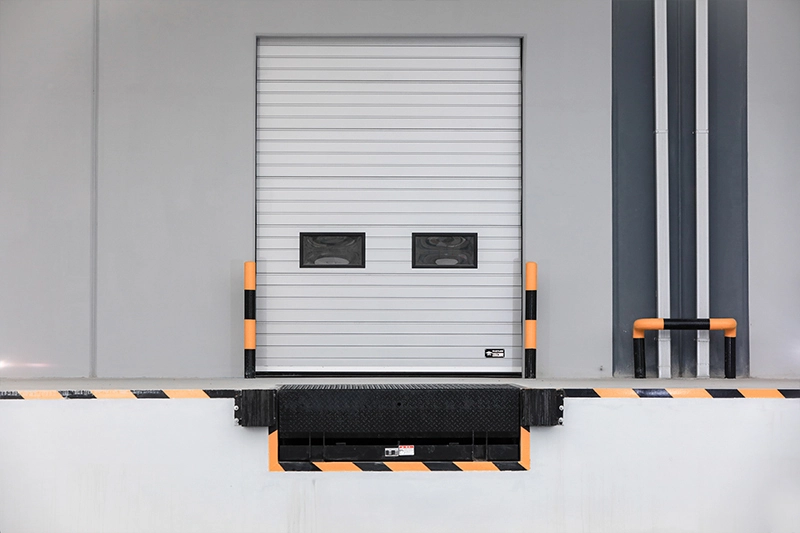

Insulated Sectional Door
Insulated sectional doors are extensively utilized in commercial as well as industrial facilities to serve as high performance access solutions provided to logistics and operational areas. The design of these doors is based on optimum thermal insulation, wind resistance, air tight sealing thereby maintaining the steady temperature of indoor areas thereby minimising energy consumption and improving the entire work process.
The door panels are made of multiple layers of steel sections, filled with high density, fluorine-free polyurethane foam, which provides both high levels of insulation and opens up the structural integrity of the panels. A precision balanced lift mechanism will allow the doors to open smoothly on vertical tracks while offering safe, stable and space-saving opening and closing.
The insulated sectional doors are ideal for many industrial facilities including warehouses, manufacturing plants, cold storage warehouses or distribution centers. The insulated sectional doors provide the durability combined with the security capability of intelligent control that is necessary in tough industrial environments.
Typical application industries: logistics warehouses, cold chain, automotive plants, semiconductors plants, food factory, and pharmacy factory.
Product Specifications
A cost-effective choice, also featuring heat insulation and anti-theft functions.
| Item | Specifications |
|
Door dimensions |
Min. 1,800 mm x 2,000 mm (W x H) (5'11'' x 6'7'') Max. 5,000 mm x 5,000 mm (W x H) (13'5'' x 13'5'') |
| Door opening/closing speed | 0.25 m/s |
| Door panel material |
Polyurethane foam material
|
|
Door panel thickness
|
65 mm (2.6'')
|
|
Door panel color
|
RAL 9002/RAL 9006/
RAL 7040/RAL 7045
|
|
Installation position
|
Interior
|
|
Door frame structure
|
Optional
|
|
Door opening configuration (optional)
|
Remote control/Three control buttons/Geomagnetic sensor/Radar/ Pull cord switch
|
|
Operating temperature
|
0°C to 25°C
|
A cost-effective choice, also featuring heat insulation and anti-theft functions.
|
Item
|
Specifications |
|
Door dimensions
|
Min. 1,800 mm x 2,000 mm (W x H) (5'11'' x 6'7'')
Max. 11,500 mm x 8,000 mm (W x H) (37'9'' x 26'3'')
|
|
Door panel thickness
|
42 mm (1.7")
|
|
Standard colors
|
RAL 9002/RAL 9006/
RAL 7040/RAL 7045
|
|
Special colors
|
Customizable
|
|
Standard height
|
500 mm (1'8'
|
| Door panel weight(including metal accessories) |
12 kg/m2 for steel door panels; 10 kg/m2 for aluminum door panels
|
| Wind resistant (GB/T 7106-2008) |
Standard: 700 Pa
|
| Water resistant (GB/T 7106-2008) | Level 1 |
| Air permeability (GB/T 7106-2008) | Level 6 |
| Window | Optional |
| Opening and closing speed | 0.25m/s |
Performance Characteristics
Multiple security measures
• Bottom safety sensor: no longer require spiral wires, avoiding entanglement and accidental scratching of bottom sensor.
• Wire rope anti breakage device: When the wire rope breaks, the safety switch can automatically clamp on the track to prevent the door from falling.
• Semi enclosed track handguard design: handguard protection for greater safety, removeable track and secondary track for easy replacement, effectively reducing maintenance costs.
• Built in safety design of steel wire rope: The steel wire rope is placed on the inside of the track, which is not easy to touch and avoids accidental injury
Highlights of Component Design
IP54 protection level
Multiple interfaces
Improvement method
Vertical lifting/high-level lifting/standard lifting(Right Angle lift). Diversified lifting methods to meet installation needs in different spaces
Key features of the process
Our in-house designers and engineers have produced countless great designs for customers from different industries
Cooperative Case
Alibaba Long An,BWID Binh Duong, Vietnam SLP, Singapore YCH, JD, Prologis, Sinotrans, Caterpillar
