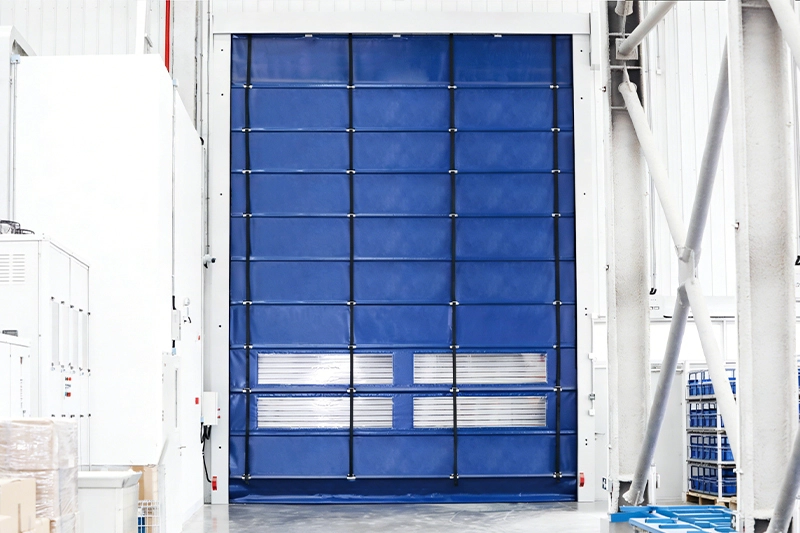

High-Speed Stacking Door
The main purposes of the high-speed stacking doors design include fast opening and closing, resistance to wind, effective sealing, protection from insects and dust, and smart controls. It is utilized primarily for logistical pathways to enhance productivity for companies.
Our automated manufacturing processes produce all of our door curtains consistently, producing a stable product of consistent quality. The bending of the sheet metal door panel together with the tracks incorporate built-in sealing brushes to ensure that operating at high speeds, running very quietly, and moving very smoothly occur at the same time.
The product has several protection mechanisms incorporated to guarantee its safe and reliable use over an extended period. The multi-option opening makes it possible for the user to select the appropriate opening modes based on their specific usage environment.
The door is fitted with access control systems that have intelligent controls for integration, and can be operated remotely via mobile devices. The user can operate the door conveniently and safely.
Product Specifications
A cost-effective choice, also featuring heat insulation and anti-theft functions.
| Optional Requirements | Specifications |
| Door dimensions | Min.1,500mm×2,000mm(4'17"×67")(W×H) Max.8,000mm×9,000mm(26'3"×29'6")(W×H) |
| Opening speed | 0.6-1.2m/s |
| Door curtain | 0.8mm/Customized,PVC |
| Window | 1.5mm, PVC |
| Curtain type | Entire curtain |
| Motor cover | Standard |
| Winding shaft cover | Optional |
| Door curtain color | Blue/Yellow/Orange/Grey |
| Track color | RAL 9002(Grey White)/RAL7015(Slate Grey)/Stainless steel/Customized |
| Installation position | Interior/Exterior |
| Door opening options | Remote control/Three control buttons/Geomagnetic sensor/Radar/Pull cord switch/Device interconnection |
| Service life | More than 1 million cycles |
| Wind resistance level | Max.450 Pa |
Performance Characteristics
Multiple safety protection measures ensure the safety of operators
• Safety photoelectric: When the curtain descends, it will detect the presence of people passing through and the curtain will fully open upwards.
• UPS power supply: In the event of power failure, the backup power can be used to electrically operate the door opening and closing.
• Safety airbags: During the descent of the curtain, if it encounters an obstacle, it will stop descending and fully open upwards.
Highlights of Component Design
Key features of the process
Our in-house designers and engineers have produced countless great designs for customers from different industries
Cooperative Case
BYD, Aoxi, Dulingding New Energy, Inke, Longxin Electronics, Sina Environmental Protection, Simerak, Philips, etc.
