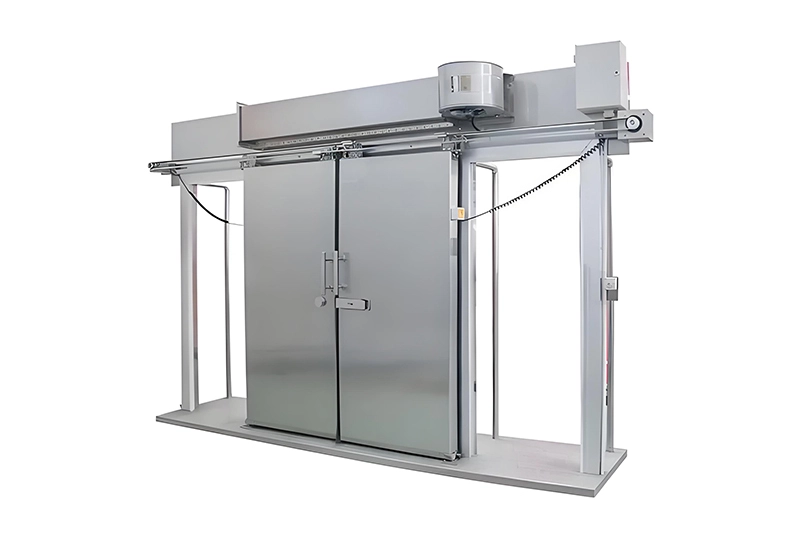

Cold Storage Metal Sliding Door
The cold storage metal sliding door has a modular design and a polyurethane insulation core. It is produced on a highly standardized basis, has a simple structure, operates smoothly, lasts a long time, provides excellent thermal insulation, and is very safe.
This cold storage metal sliding door is made and installed following the "17J610-1 Cold Storage Door" national standard and the "SB/T10569-2010 Cold Storage Door" industry standard.
The cold storage metal sliding door has a variable track system and is equipped with a "floating open and sinking close" door opening system to achieve the self-sealing effect during the use of the door.
Typical application industries: Applicable to assembled cold storage, civil cold storage, constant temperature storage and ultra-low temperature cold storage with temperature not lower than -60 ℃ for food, medicine, logistics and chemical industry.
Performance Characteristics
All-round safety protection
• Anti-trap function: Adopting permanent magnet servo motor, with self-bouncing function in case of obstruction.
• Emergency manual opening device: After power failure, the door can be opened manually from inside and outside. External door opener lever-type opening handle, internal door opener for automatic interlocking device.
• Safety warning: Internal door opening and unlocking device has eye-catching luminous marking.
• Door opening and closing warning light: The door opening status has a beeping warning light to remind the personnel to pay attention to the safety of the passage
• Electrical safety: 1. The net gage has a self-limiting heating wire with a maximum limiting temperature of 65℃. Meet the requirements of GB/T19835. 2. The electric control box is equipped with leakage, overload, short circuit protection and thermostat protection.
Highlights of Component Design
Key features of the process
Our in-house designers and engineers have produced countless great designs for customers from different industries
Cooperative Case
Alibaba Long An, BWID Binh Duong, VX COLD CHAINLOGISTICS, GFS, Singapore YCH, JD.com, Prologis, Sinotrans
fAq
Frequent door opening and closing: it is recommended to choose high-speed sliding door for cold storage, a door can realize heat preservation, high-speed switching, frequent switching, anti-collision reset and other functions, which has been applied in a large number of cold storage.
Infrequent opening and closing: it is recommended to choose metal cold storage sliding door, which can realize effective sealing and heat preservation, and has been applied in a large number of storage cold storage.
