Garage Door
Garage Door
Garage Door
Garage Door
Garage Door
Garage Door

Garage Door

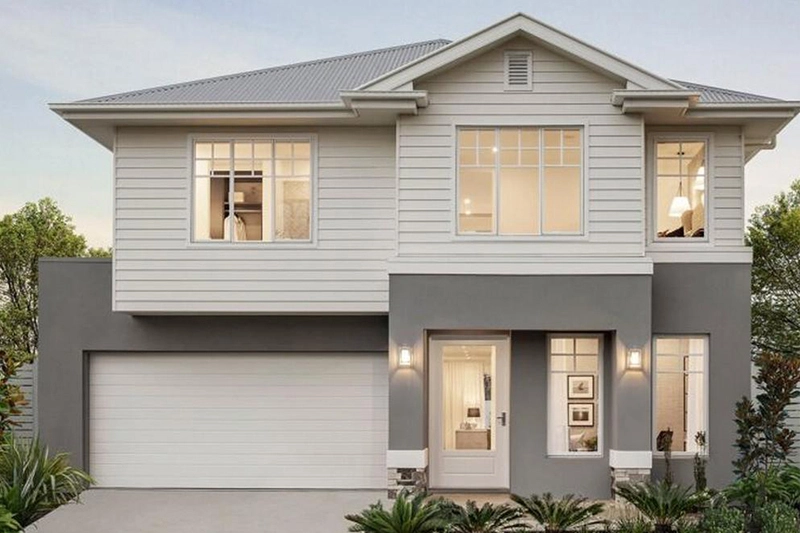

The garage door provides a secure solution to protect your private garage from theft, and offers insulating and good wind performance, as well as is safe, sealed and controlled by intelligent devices. The Garage Door requires very little space on the property and can easily be installed and maintained.



The door panel incorporates several layers, and high density polyurethane material imported from Huntsman (100% Freon free) is applied between these layers. There is a dynamic balance system on the door. The two tracks allow the two rollers to move up and down and allow the door panel to lift and lay under the ceiling.



The garage door opener has safety protection devices. When closing the door, if the door encounters an obstacle it will reverse to a full open position. The manual clutch is used to manually operate the door in case of a power outage.

5.0
design customization
Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review
    Structural diagram

    Performance Characteristics

    Performance Characteristics
    Performance Characteristics
    Imported continuous automatic production line from Bayer, Germany, with superb thermal insulation
    Performance Characteristics
    Performance Characteristics
    Thermal insulation, high-density polyurethane for -35°C to 60°C (usual environment)
    Performance Characteristics
    Performance Characteristics
    The special shape of the door panel and the embossed design of the surface make the door have excellent wind resistance, able to resist 12-level typhoon, wind pressure resistance performance of 700Pa.
    Multiple safety protection measures
    Multiple safety protection measures

    Multiple safety protection measures

    • Rebound in case of obstacles: When the door meets obstacles in the process of descending, the door will stop descending and lift upward to the highest point by automatic sensing.

    • Semi-closed track hand guard design: Anti-pinch hand guard protection, safer to use, the track and sub-track can be disassembled, easy to replace, effectively reduce maintenance costs.

    • Wire rope built-in safety design: The wire rope is placed on the inner side of the track, it is not easy to be touched, so as to avoid the personnel from being accidentally pinched by it.

    • Loose hand-shaped design: The door plate adopts a rounded anti-pinch pattern, which makes it safer to open and close the door.

    Highlights of Component Design

    Highlights of Component Design
    Highlights of Component Design
    DC motor for garage door, precise positioning. Single-phase 220V, power:70w-200w. The door adopts chain track drive, the switch wire rope will not fall off. You can choose manual door, electric door. Electric door can choose button, remote control switch, bluetooth, license plate recognition, mobile APP.
    Highlights of Component Design
    Highlights of Component Design
    High-strength spring steel, shot processing, corrosion-resistant, rust-resistant, maintenance-less.
    Highlights of Component Design
    Highlights of Component Design
    The wire rope is placed on the inner side of the rail, which is not easy to be touched, thus avoiding personnel being accidentally pinched by it. Up to 2.5 times safety factor
    Highlights of Component Design
    Highlights of Component Design
    Cast aluminum alloy steel wire tower wheel, life of more than 100,000 times

    Improvement method

    Standard lifting (90-degree turn lifting)/high lifting/vertical lifting. Diversified lifting methods are available to meet different space installation

    Standard lifting(Right Angle lift)
    Standard lifting
    High-level lifting
    High-level lifting
    Vertical lifting
    Vertical lifting

    Cooperative Case

    Alibaba Long An,BWID Binh Duong, Vietnam SLP, Singapore YCH, JD, Prologis, Sinotrans, Caterpillar

    Cooperative Case
    Cooperative Case
    Cooperative Case
    Cooperative Case
    Cooperative Case
    Cooperative Case

    fAq

    1
    Q: Is the garage door safe to use?
    A: Fastlink garage door is excellent in safety design, you can choose it with confidence, its safety design includes bottom door panel rebound in case of obstruction during descent, wire rope anti-breakage safety protection design, torsion spring anti-breakage safety protection design, and door panel anti-pinch hand design. And the manufacturer provides a complete operation and maintenance guarantee manual for customers' reference.
    2
    Q: Will a garage door resist wind better than a roll-up door?
    A: The unique structural design of the garage door has a strong wind resistance, it can meet at least 700Pa wind resistance. in some coastal cities where typhoons pass through the area, Fastlink garage door can withstand the test of the typhoon, still safe and sound.
    3
    Q: What is the minimum amount of installation space required above the door opening? What is the minimum space required on both sides of the door opening?
    A: Minimum installation space above the door opening is 350mm
    Minimum installation space on each side of the door opening is 150 mm.
    4
    Q: What is the life span of a garage door?
    A: Normal maintenance can be used for more than 10 years. Correct use and regular maintenance will help the garage door to last more years.
    Garage Door-场景1

    Video

    Garage Door 20
    Product Demonstration: Garage Door
    Discover our durable and stylish garage doors, featuring smooth operation, enhanced security, and customizable designs for residential and commercial spaces.
